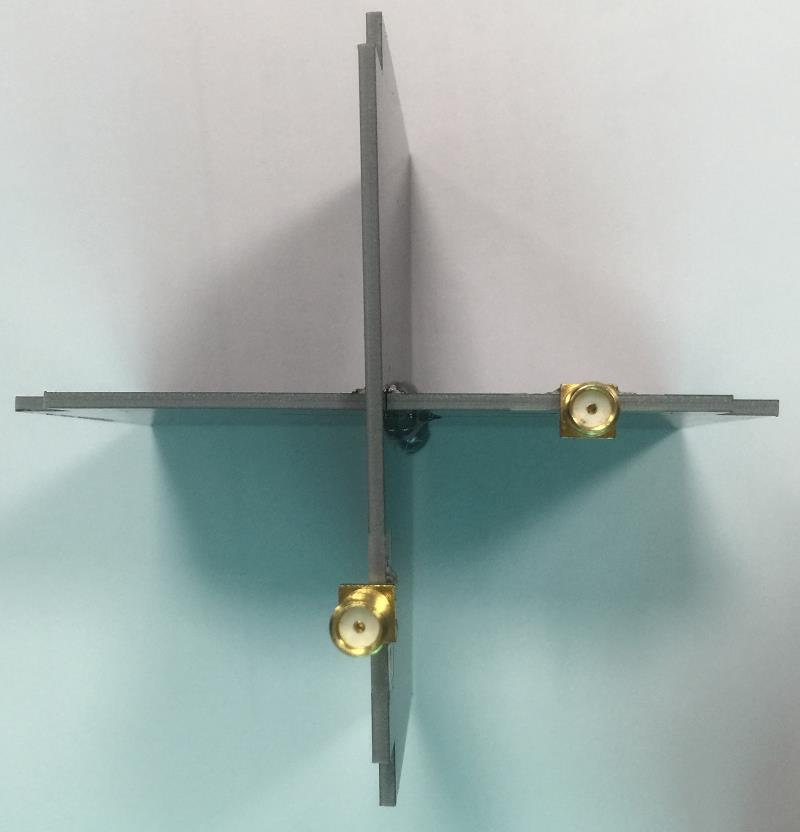

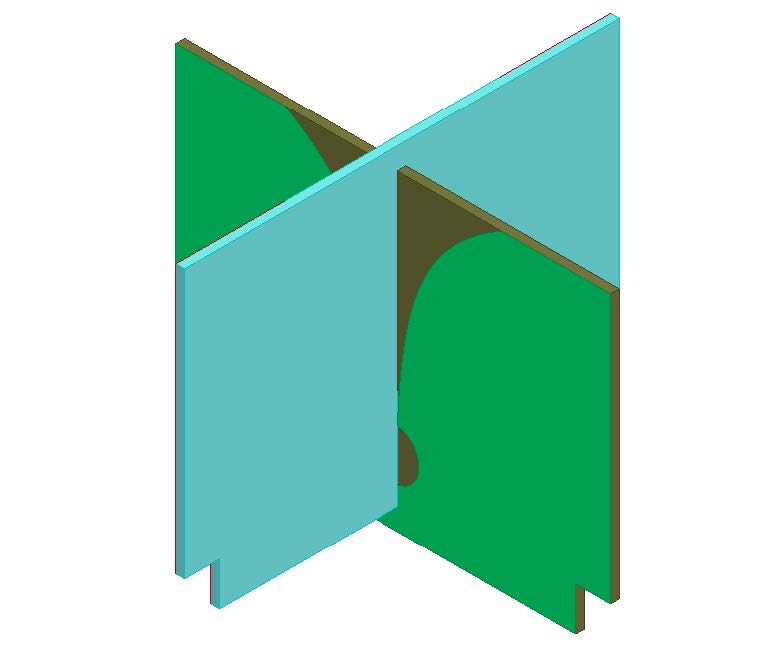

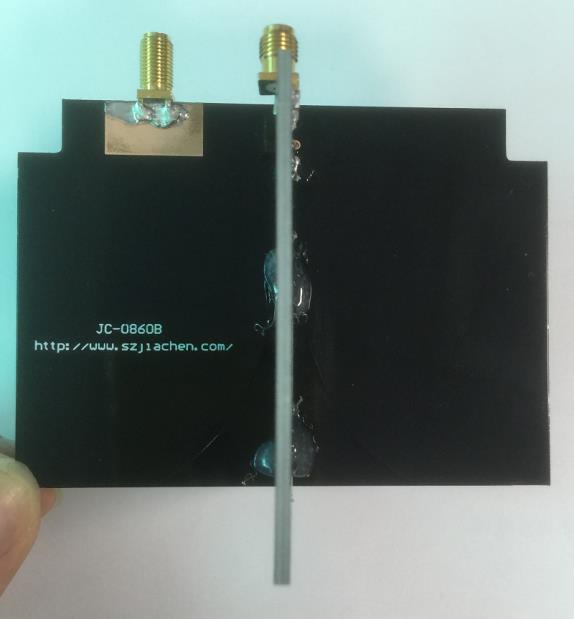

Jc-0860 dual polarization broadband antenna

发布时间:2020-03-26 16:04:32浏览次数:

1.Jc-0860 dual polarization broadband antenna product introduction:


Jc-0860 dual polarization antenna is a broadband antenna with frequency coverage of 700mhz-6ghz, stable standing wave, standing wave ratio less than 3, small size and excellent workmanship. It can be used for testing mobile phones, Bluetooth, wireless network cards, GPS, WiFi and other wireless modules.


2、 Specification


型号

JC-0860

频率(Frequency Range)

0.7 ~ 6 GHz

增益(Gain)

-0.8 dB @ 0.8 GHz    2.0 dB @ 1.8 GHz   4.5 dB @ 2.4 GHz     6.4 dB @ 5.8 GHz

驻波比(VSWR)

≤3 : 1

端口阻抗(Zo)

50 Ohm

射频接口(RF Connector)

SMA母(F)

尺寸(Dimension)

100(W) x 100(D) x 77(H) mm

三、 双极化宽频带天线测试结果

双极化宽频带天线测试结果

双极化宽频带天线测试结果
