Jc-9309 broadband antenna test module

发布时间:2020-03-26 15:59:03浏览次数:

1、 Product introduction of broadband antenna test module:

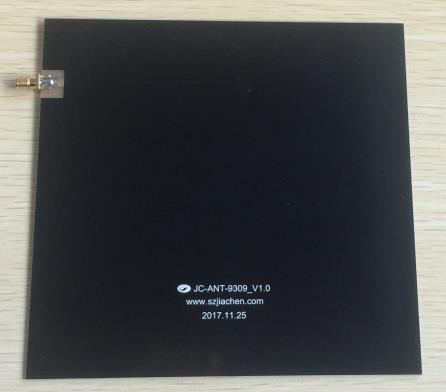

Jc-9309 is a broadband antenna with a frequency coverage of 1ghz-6ghz, stable standing wave, standing wave ratio less than 2, small size and excellent workmanship, which can be used for testing mobile phones, Bluetooth, wireless network cards, GPS, WiFi and wireless modules.


2、 Specification of broadband antenna test module

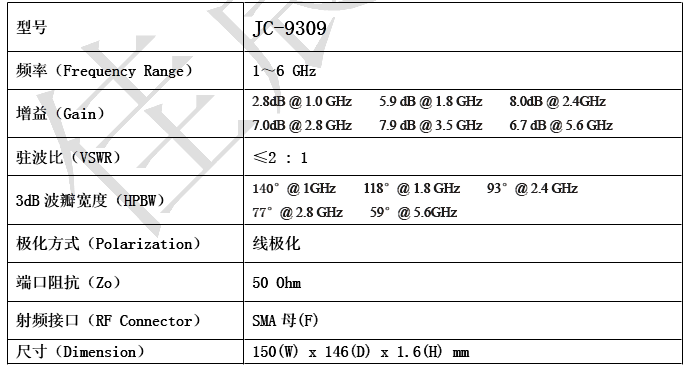

宽频带天线测试模块规格参数(Specification)

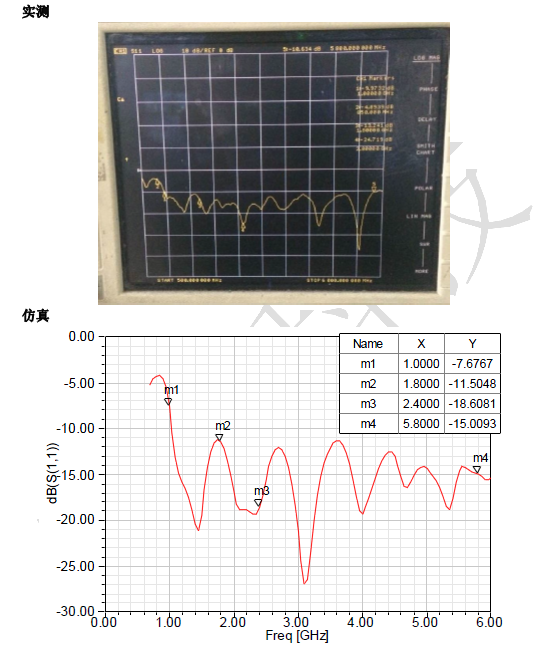

3、 Test results of broadband antenna test module (vsmr)

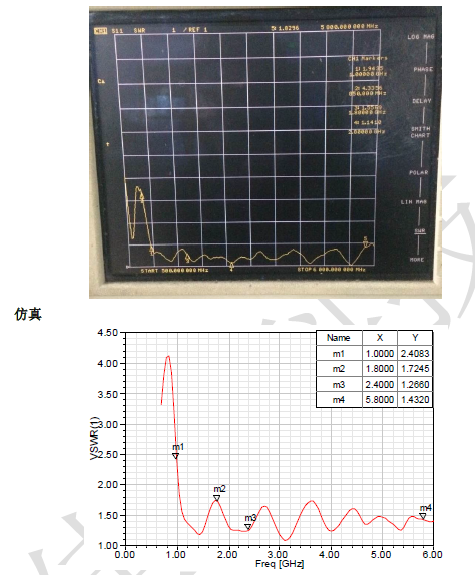

宽频带天线测试模块仿真测试结果 (VSMR)

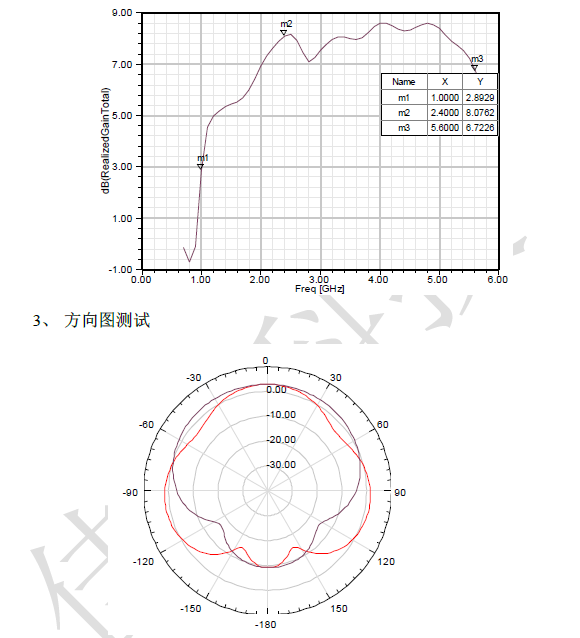

宽频带天线测试模块增益方向测试结果 (VSMR)
