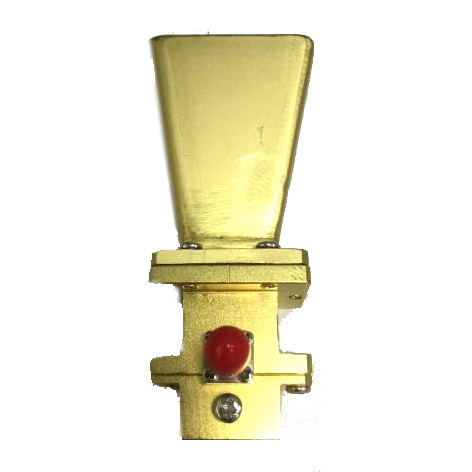

Jc-1840 horn antenna test antenna

发布时间:2020-03-26 15:53:07浏览次数:

1、 Jc-1840 horn antenna product introduction:


The jc-1840 horn antenna is a broadband antenna with a frequency coverage of 18ghz-40ghz, stable standing wave, a standing wave ratio less than 2, small size and excellent workmanship. It is widely used in millimeter wave testing.


2、 Jc-1840 horn antenna specification


JC-1840喇叭天线规格参数(型号	JC-18Ghz~40Ghz 频率(Frequency Range)	18~40GHz 增益(Gain)   	15dB @ 18 GHz    17.5 dB @ 24 GHz    18.7dB @ 30GHz 18.9dB @ 32GHz    21.4dB @ 36GHz    21.2 dB @ 40GHz 驻波比(VSWR)	Typ≤1.5 : 1 3dB波瓣宽度(HPBW)	40°@ 18GHz    32°@ 24 GHz    28°@ 30 GHz 27°@ 32 GHz    20° @ 36GHz    19° @ 40 GHz 极化方式(Polarization)	线极化 端口阻抗(Zo)	50 Ohm  射频接口(RF Connector)	2.4Connector(F) 尺寸(Dimension)	(L) 45 x  (W) 25 x  (H) 95 mm)



3、 Standing wave test (VSWR) results of jc-1840 horn antenna

JC-1840 喇叭天线驻波测试(VSWR)结果

4、 Jc-1840 horn antenna gain test (VSWR) results

四、JC-1840 喇叭天线增益测试(VSWR)结果
