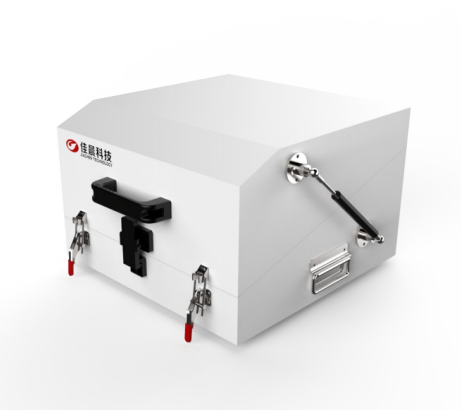

Pb2044 manual shielding box

Principle of pb2044 manual shielding box

Jc-pb2044 is a manual shielded box with large working size, which is suitable for the detection of mobile phones, routers, tablet cordless phones and some relatively large wireless communication equipment. The shielding box is made of sheet metal, which has good shielding tightness and firm structure, and its operation is simple and labor-saving. It is an economical and practical shielding test box.

Features of shielding box:

One is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal;

The second is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Product model of shielding box: pb2044 (prototype No.: pb2381)

◆ product category: shielding box

◆ control mode: Manual

◆ box structure: shell type

◆ box material: Aluminum

◆ box process: Casting

◆ appearance color: beige

◆ scope of application: EMI / EMS test / coupling test / RF function test

  Material: sheet metal (10 + 2)

Appearance color: beige opening and closing angle: 45 °

Working frequency: 0.8ghz-6ghz

Shielding effect: 0.8ghz-6ghz ≥ 70dB

Working dimension: (L) 390x (W) 390x (H) 240mm ± 5mm

Box size: (L) 450X (W) 450X (H) 310mm ± 5mm

Appearance dimension: (L) 555x (W) 565x (H) 330mm ± 5mm
