Pz2303 manual shielding box

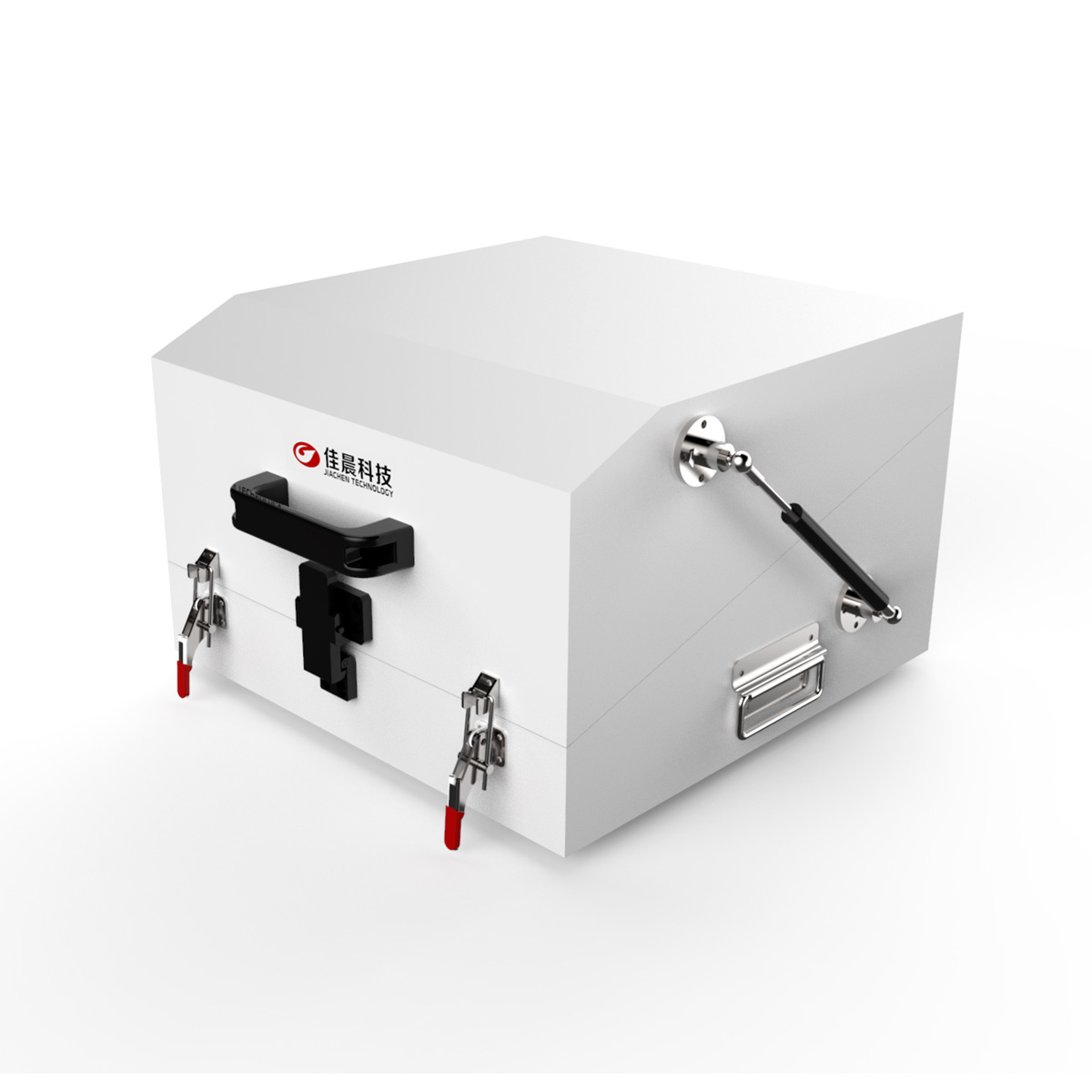

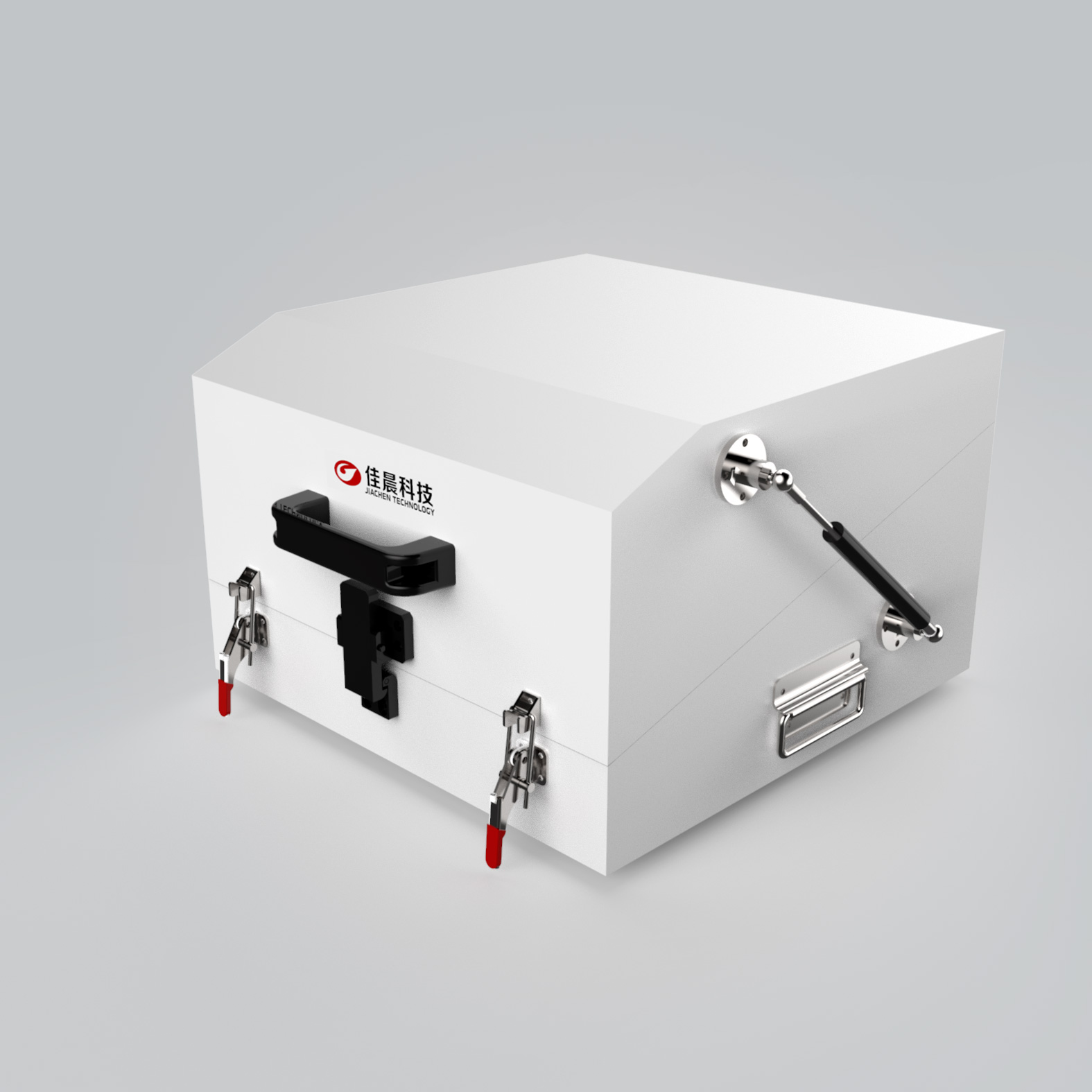

Jc-pz2303 manual shielding box product introduction

Manual shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity to a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Working principle of jc-pz2303 manual shielding box

The manual shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Product model: jc-pz2303

Material: cast aluminum (cotton 10 + 2)

Appearance color: beige

Opening and closing angle: 40.5 °

Working frequency: 0.8ghz-3ghz

Shielding effect: 0.8ghz-3ghz ＞ 80dB

Working dimension: (L) 370x (W) 390x (H) 225mm ± 5mm

Box size: (L) 430x (W) 430x (H) 280mm ± 5mm

Appearance dimension: (L) 590x (W) 500X (H) 300mm ± 5mm

Main functions and application scope of jc-pz2303 shielding box

Wireless communication test

EMI testing,

EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

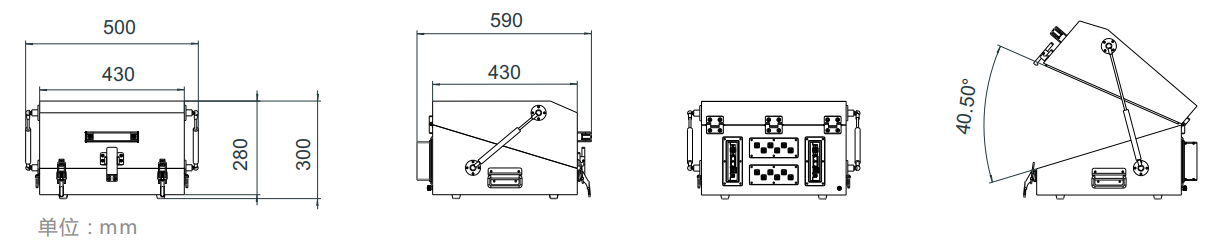

Appearance dimension of jc-pz2303 shielding box
