P1801 shielding cabinet

发布时间:2020-03-26 11:21:52浏览次数:

Jc-p1801 shielding cabinet product introduction


Shielding cabinet is a kind of cabinet type shielding box made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment. Jc-p1801 is an aging experimental shielding box, which is suitable for aging and life testing of wireless communication equipment such as wireless network card, Bluetooth, mobile phone, router, tablet computer, etc. Large internal space, equipped with network communication settings.


Main functions and application scope of jc-p1801 shielding cabinet


Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test



Jc-p1801 performance index parameters of shielding cabinet


工作频率

0.8GHz-2.4GHz

屏蔽效果

0.8GHz-2.4GHz60dB

尺寸

(L)550x(W)360±5mm

箱体尺寸

(L)850x(W)600x(H)1800mm±5mm

外观尺寸

(L)925x(W)600x(H)2015mm±5mm

材质

钣金(30

约重

270KG

通信端口

RS232

外观颜色

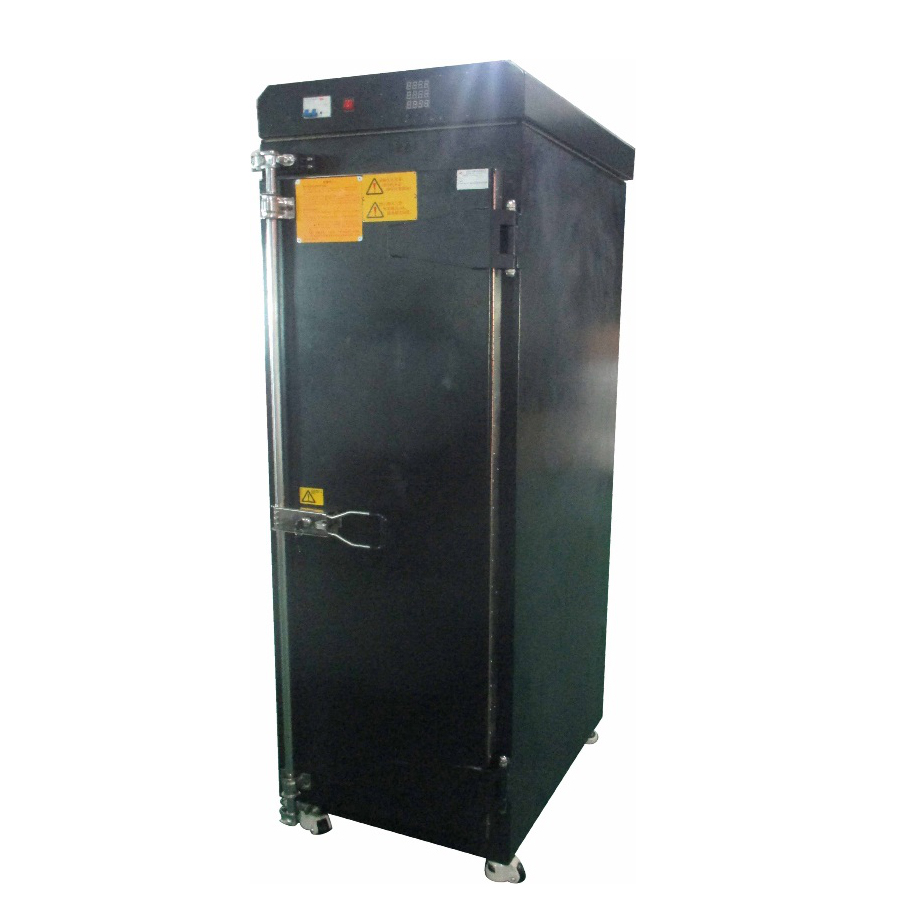

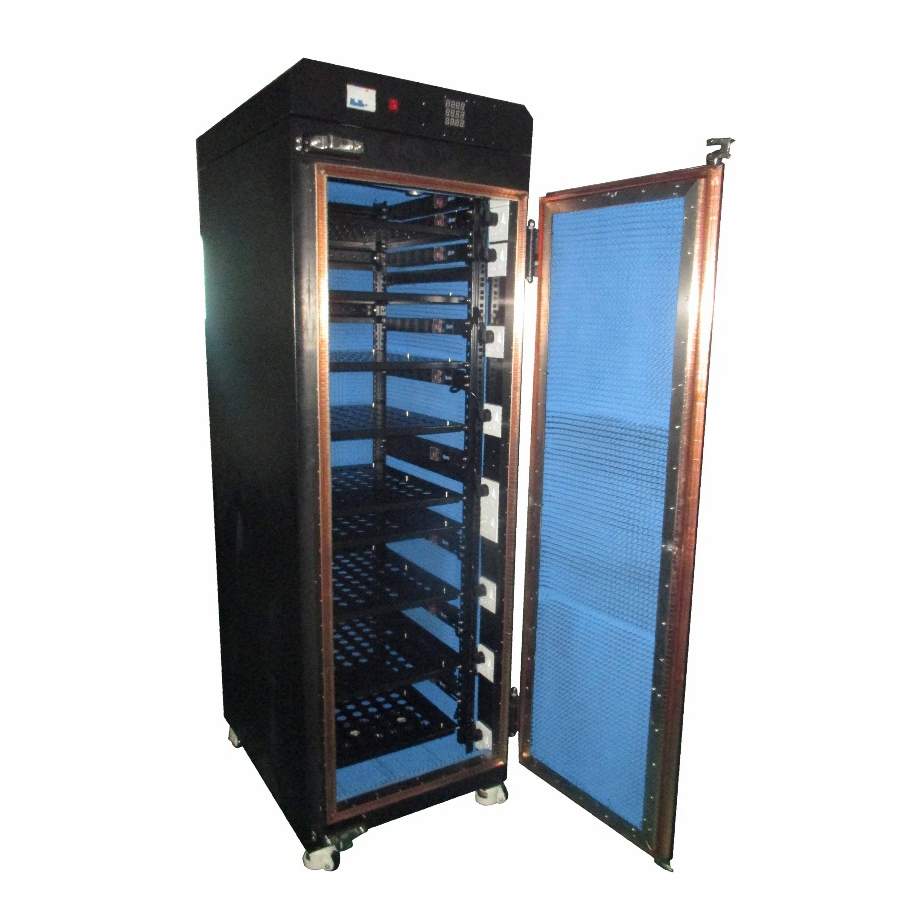

Appearance picture of jc-p1801 shielding box
