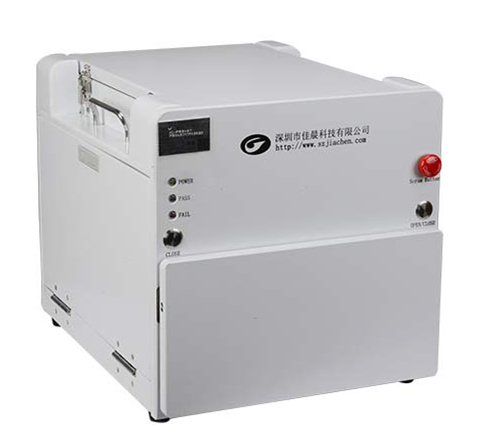

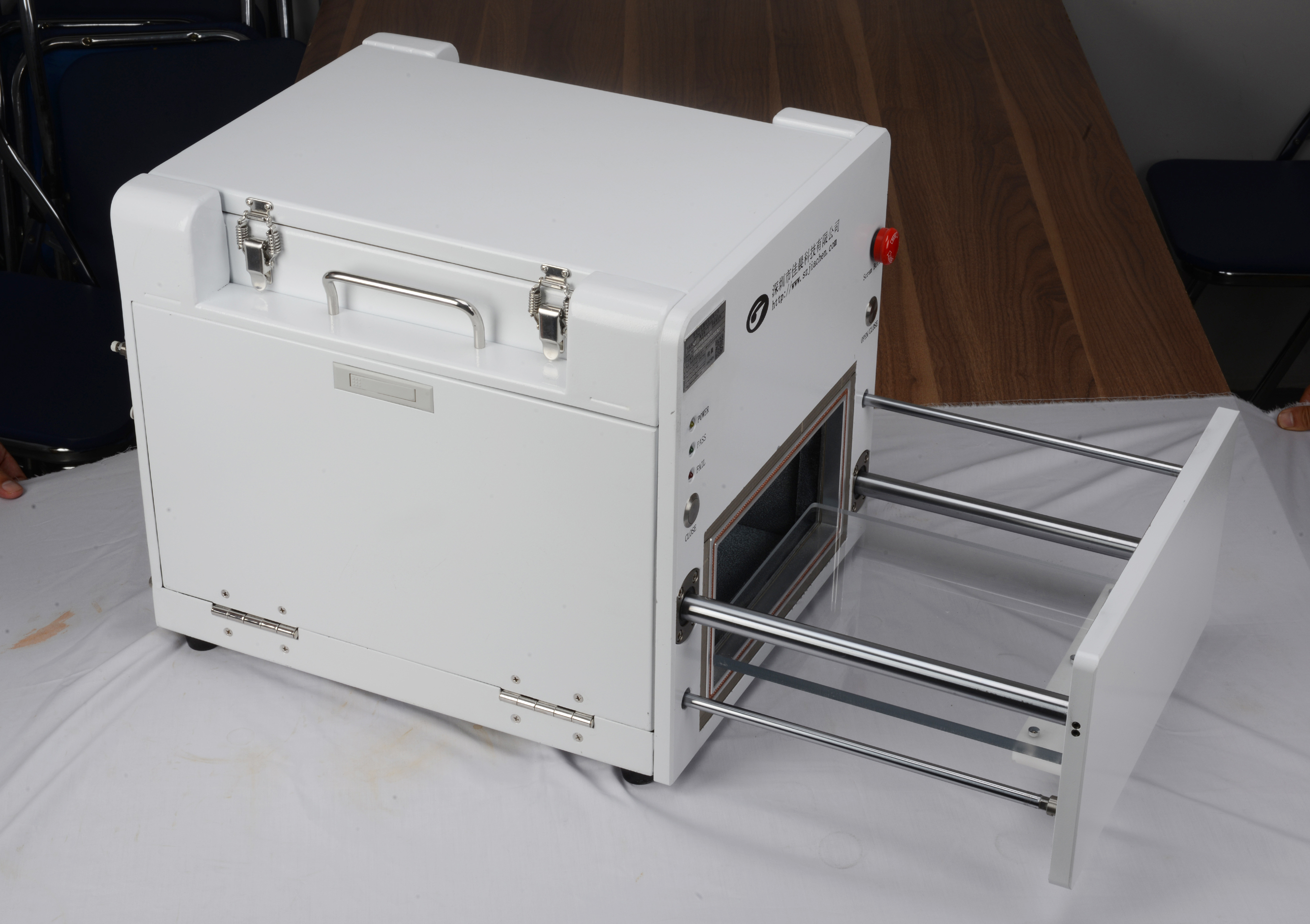

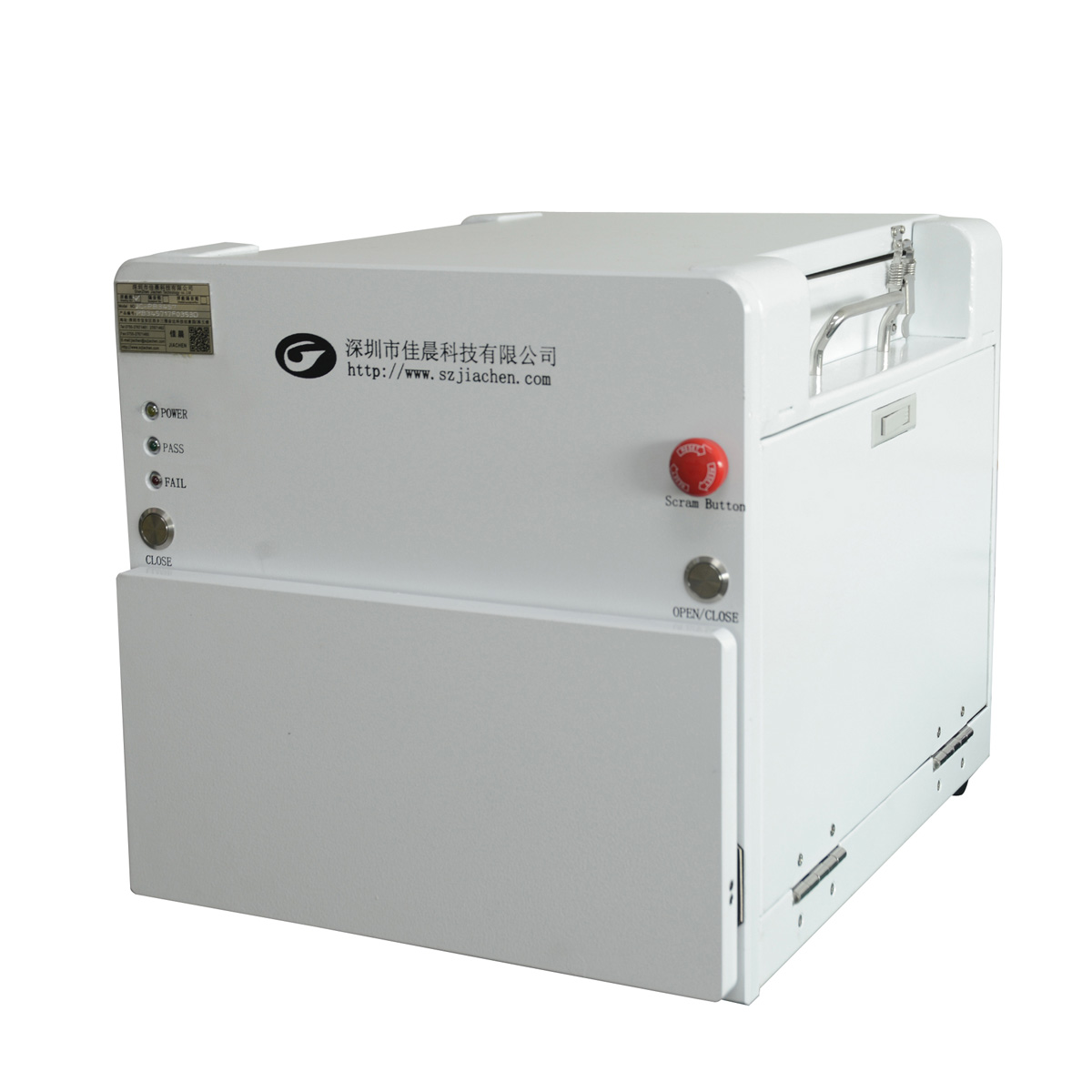

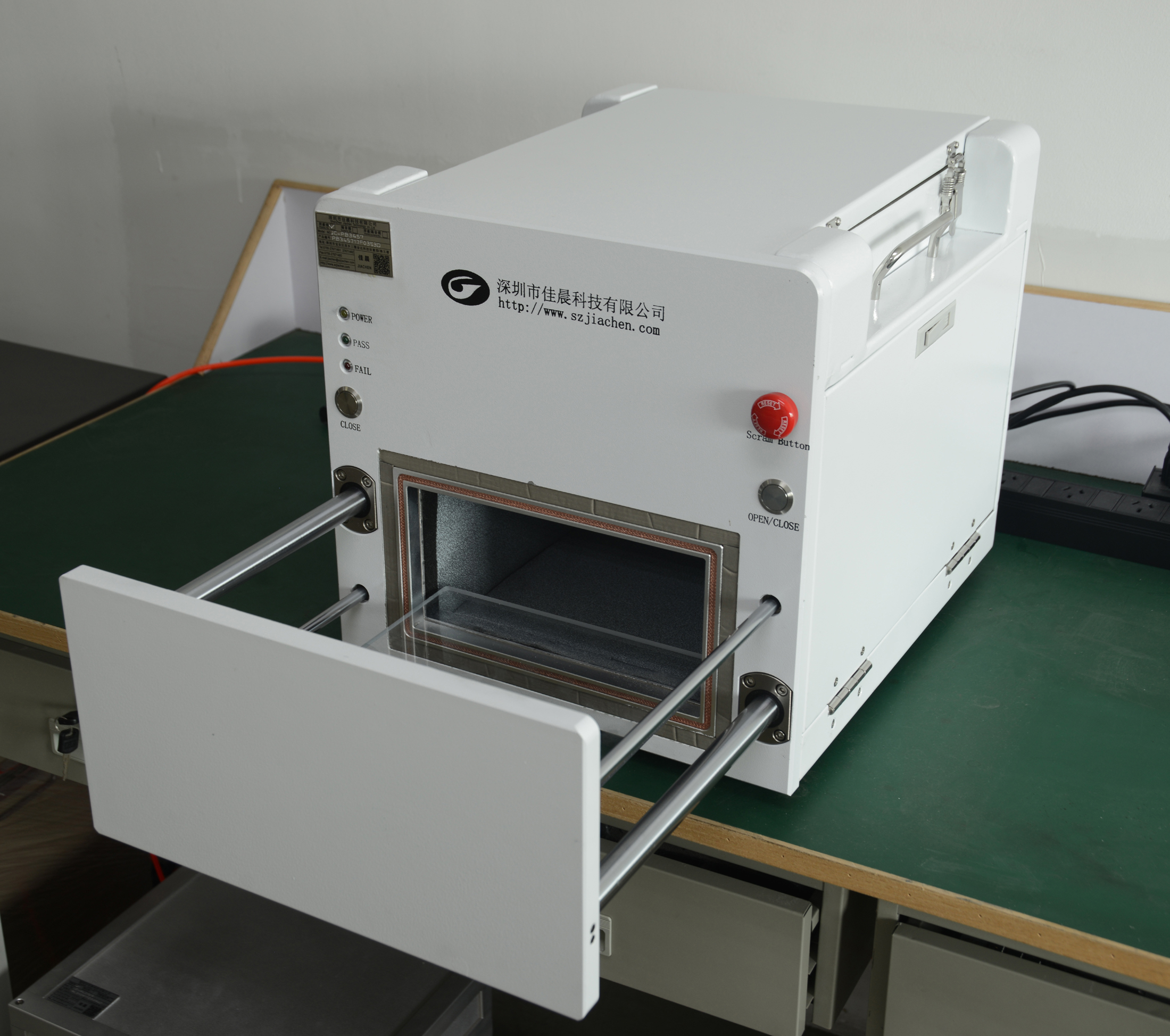

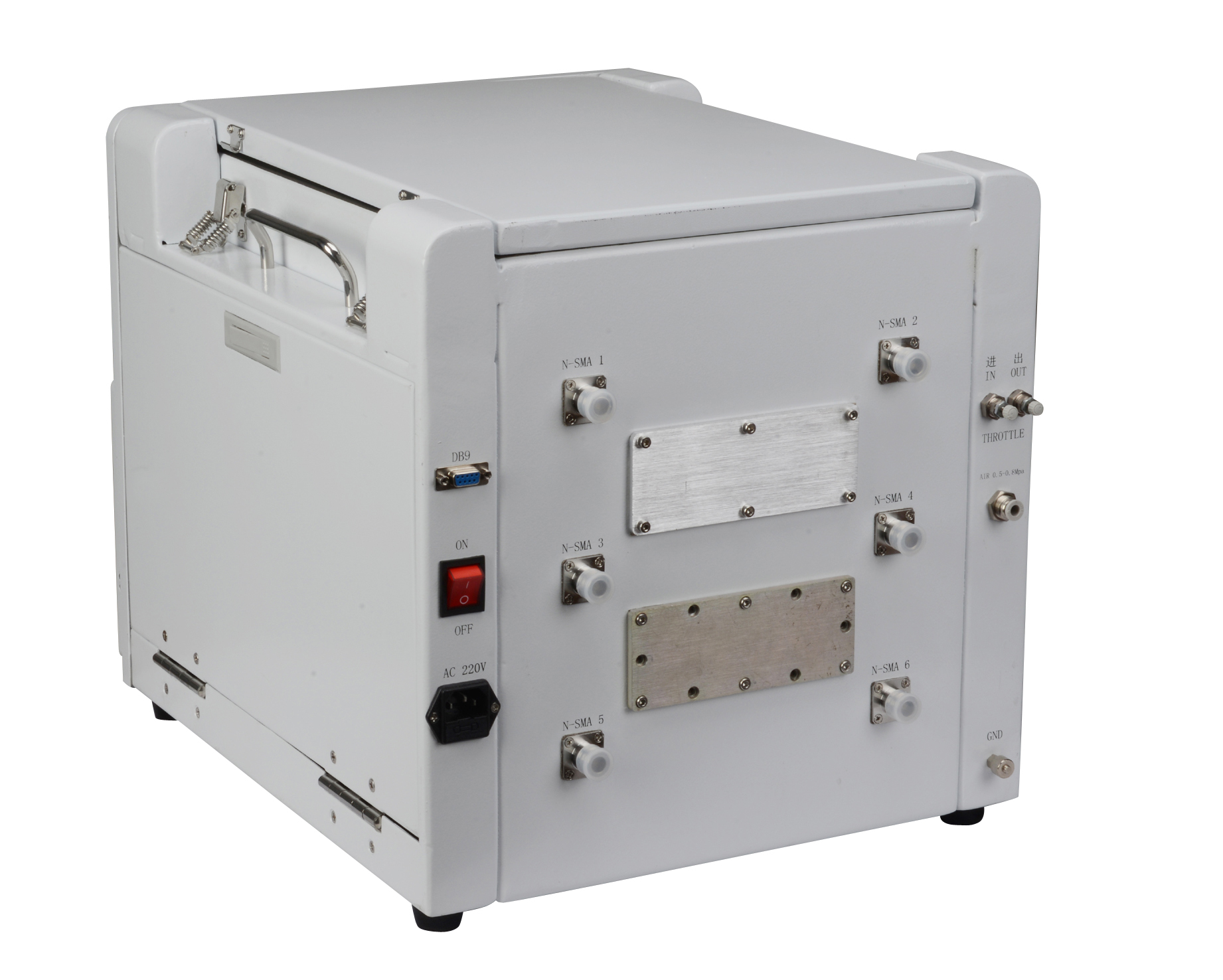

Pb3457 drawer type manual shielding box

Jc-pb33453 automatic drawer type shielding box product function:

The shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Product parameters of jc-pb33453 automatic shielding box

◆ product model: jc-pb3457

◆ product category: shielding box

◆ control mode: Pneumatic

◆ box structure: drawer type shielding box

◆ box material: stainless steel

◆ box process: sheet metal

◆ appearance color: beige

◆ scope of application: EMI / EMS test / coupling test / RF function test

◆ working size: 295x245x100mm

◆ box size: 470x390x380mm

◆ boundary dimension: 535x410x400mm

◆ net weight of product: 27.5kg

◆ frequency band and efficiency: 0.8ghz-6.0ghz > 70dB

◆ working stroke: 295mm
