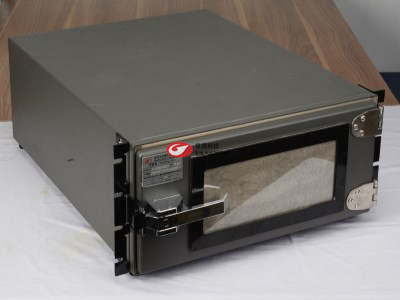

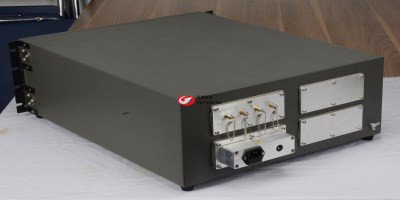

Pb2342 manual instrument shield box

发布时间:2020-03-26 10:50:32浏览次数:

Jc-pb71541 manual instrument shield box function:


The shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.


Jc-pb71541 manual instrument shield box parameters


◆ product model: original model (jc-pb2342)

◆ product category: double shielded box

◆ control mode: Pneumatic

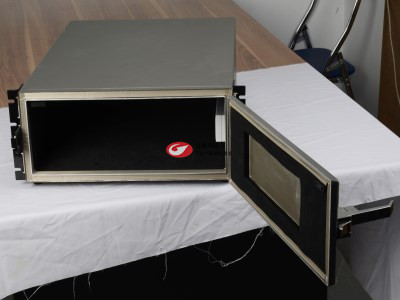

◆ box structure: front door opening

◆ box material: stainless steel

◆ box process: sheet metal

◆ appearance color: Coffee

◆ scope of application: EMI / EMS test / coupling test / RF function test

◆ working size: 480x330x140mm

◆ box size: 575x430x180mm

◆ boundary dimension: 650x478x192mm

◆ product net weight: 8.0kg

◆ frequency band and efficiency: 2.3ghz-3.6ghz ≥ 60dB
