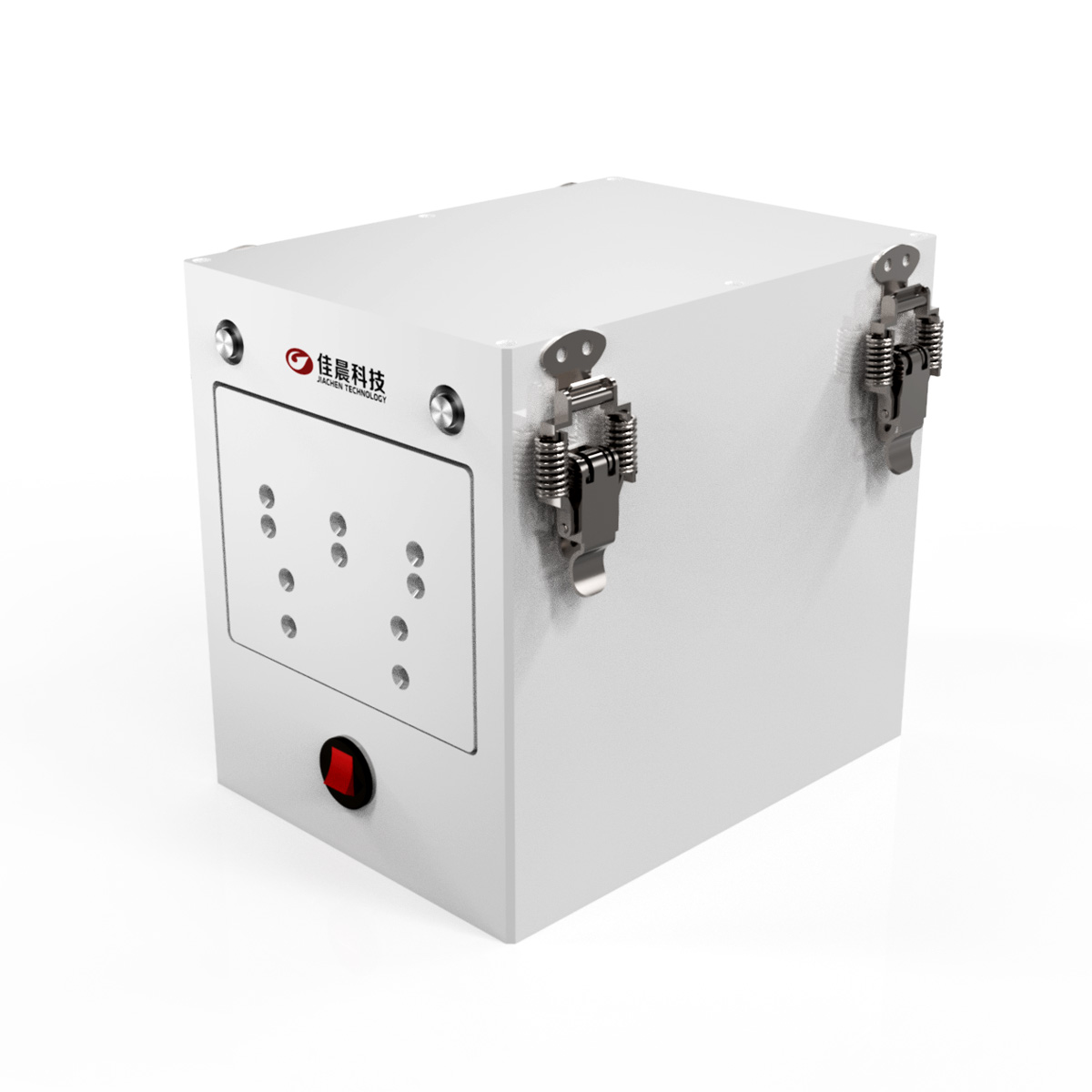

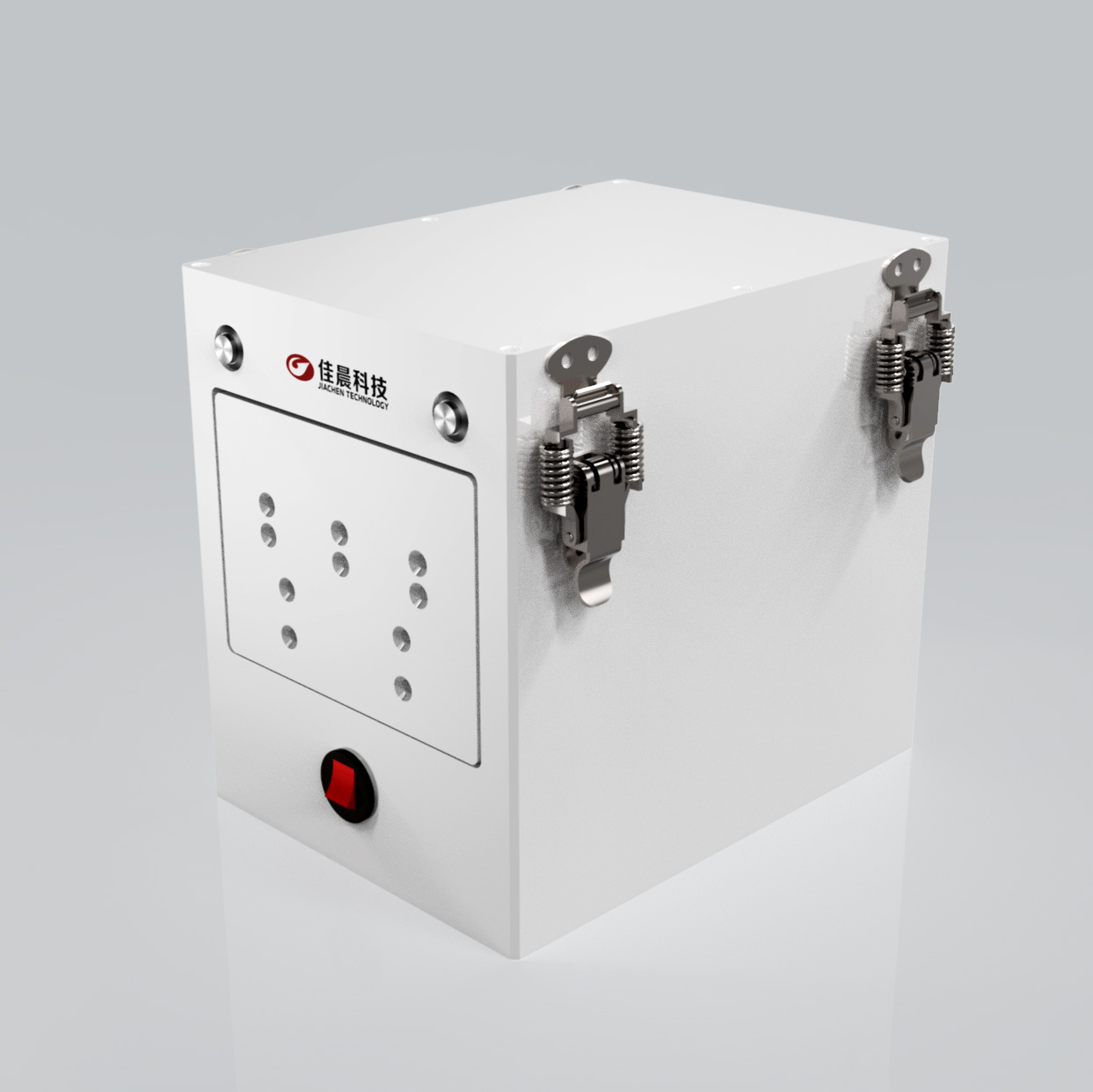

CQL3442 drawer type manual shielding box

Jc-pl3442 drawer type manual shielding box product introduction

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pl3442 drawer type manual shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Jc-pl3442 drawer type manual shielding box performance index

Material: Aluminum (cotton 5 + 2)

Appearance color: beige

Working stroke: 70mm

Working frequency: 0.8ghz-5.8ghz

Shielding effect: 0.8ghz-5.8ghz ≥ 70dB

WorkBox size: (L) 200X (W) 148x (H) 184mm ± 5mm

Appearance dimension: (L) 255x (W) 175x (H) 185mm ± 5mm

Jc-pl3442 external dimension of drawer type manual shelter
