Pl3410 Double Drawer manual shielding box

Jc-pl3410 drawer type manual shielding box product introduction

Drawer type shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Main functions and application scope of jc-pl3410 drawer type manual shielding box

Wireless communication test

EMI test, EMS test

Coupling test (coupling antenna is equipped separately)

RF function test.

Jc-pl3410 drawer manual shielding box performance index parameters of shielding box

Material: aluminum plate welding

Communication port: DB9

Appearance color: beige

Working stroke: 245mm

Working frequency: 0.6ghz-6ghz

Shielding effect: 0.6ghz-6ghz ≥ 70dB

Working dimension: (L) 245x (W) 118X (H) 82mm ± 5mm (single chamber)

Box size: (L) 435x (W) 360x (H) 325mm ± 5mm

Appearance dimension: (L) 510x (W) 385x (H) 375mm ± 5mm

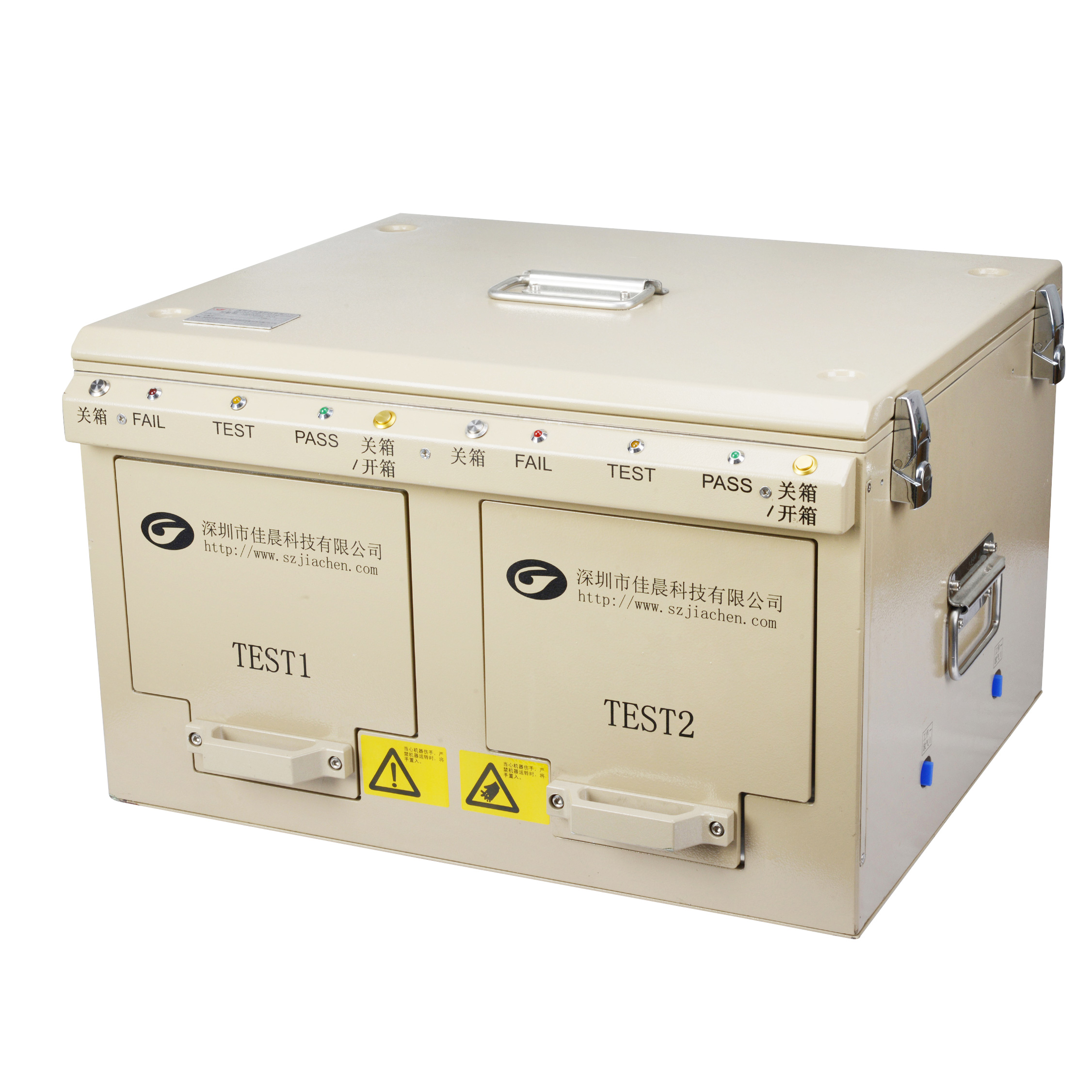

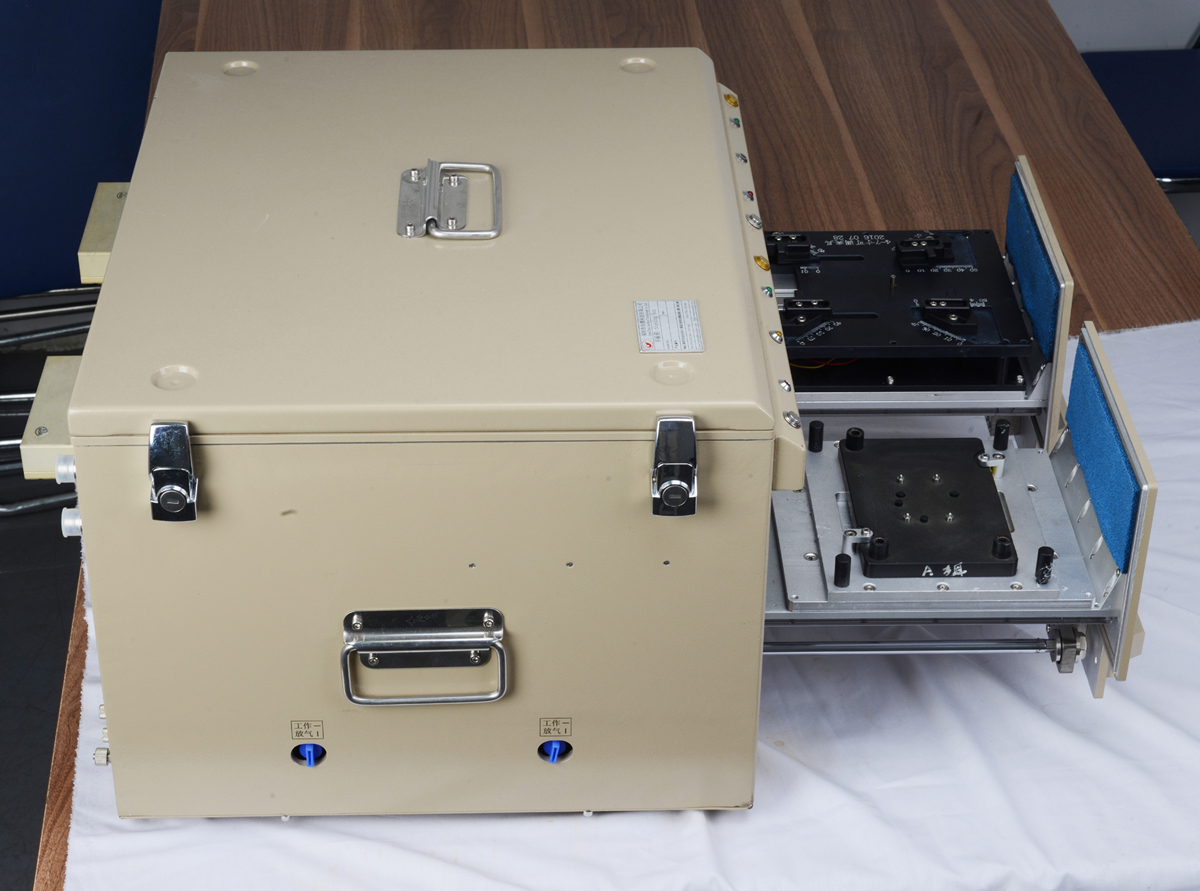

Jc-pl3410 drawer type manual shielding box appearance picture size
