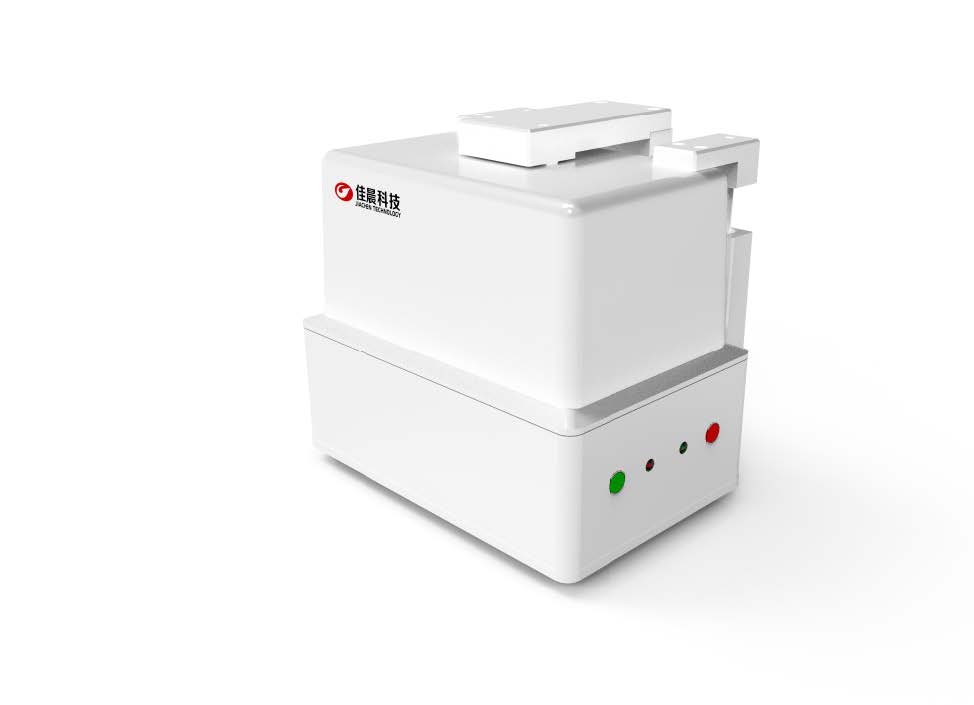

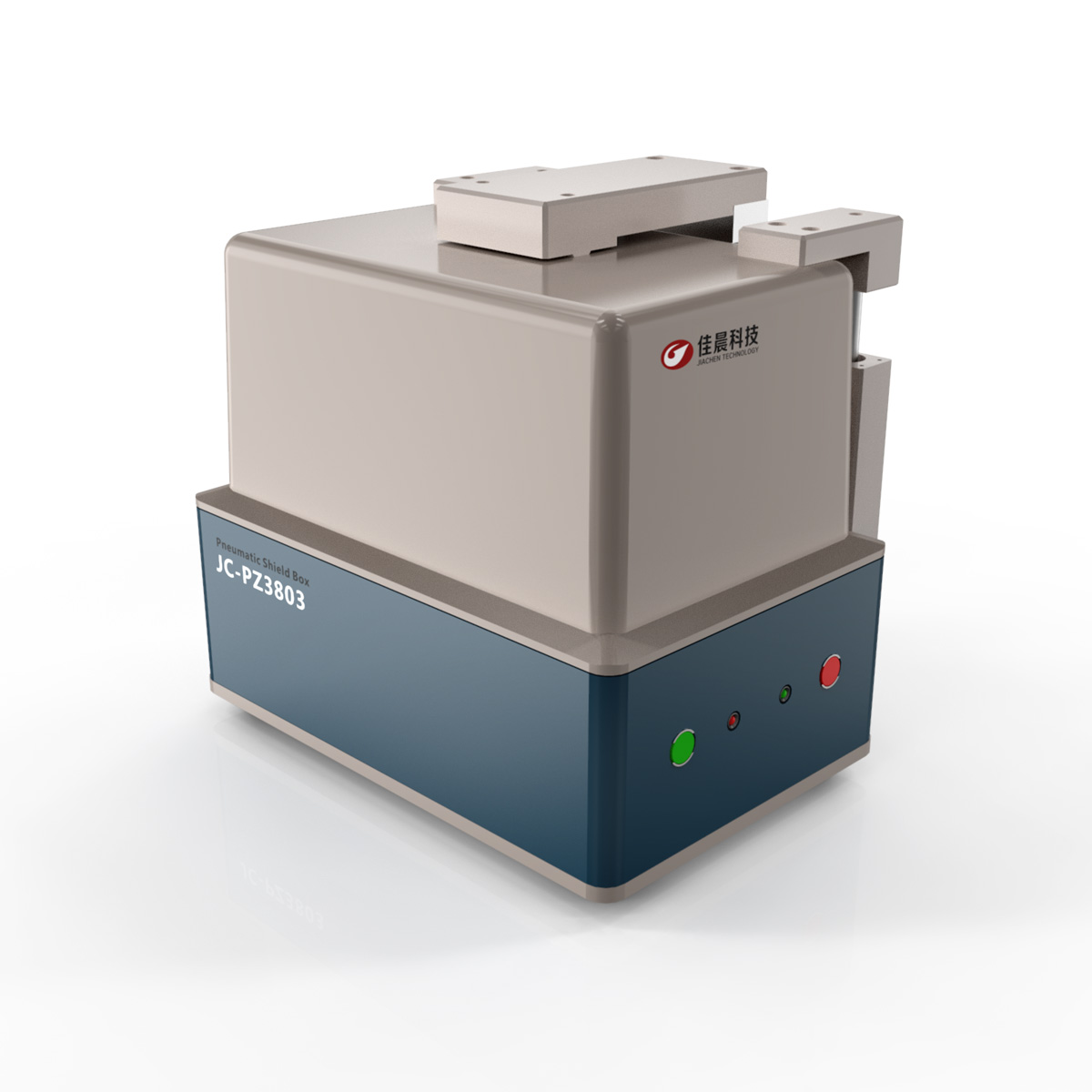

Jc-pz3803 vertical automatic shielding box

Jc-pz3803 shielding box product introduction

Shield Box

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment

Working principle of jc-pz3803 vertical automatic shielding box

The full-automatic shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Main functions and application scope of jc-pz3803jc-pz3803 vertical shielding box

Wireless communication test

EMI testing,

EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index parameters of vertical shielding box

Material: Casting (2mm glue)

Appearance color: beige

Working stroke: 135mm

Communication port: RS232 (DB9)

Working frequency: 0.5ghz-6ghz

Shielding effect: 0.5ghz-6ghz ≥ 70dB

Working dimension: (L) 135x (W) 240x (H) 130mm ± 5mm

Box size: (L) 214x (W) 320x (H) 253mm ± 5mm

Appearance dimension: (L) 255x (W) 350x (H) 295mm ± 5mm

External dimension of jc-pz3803 vertical automatic shielding box
