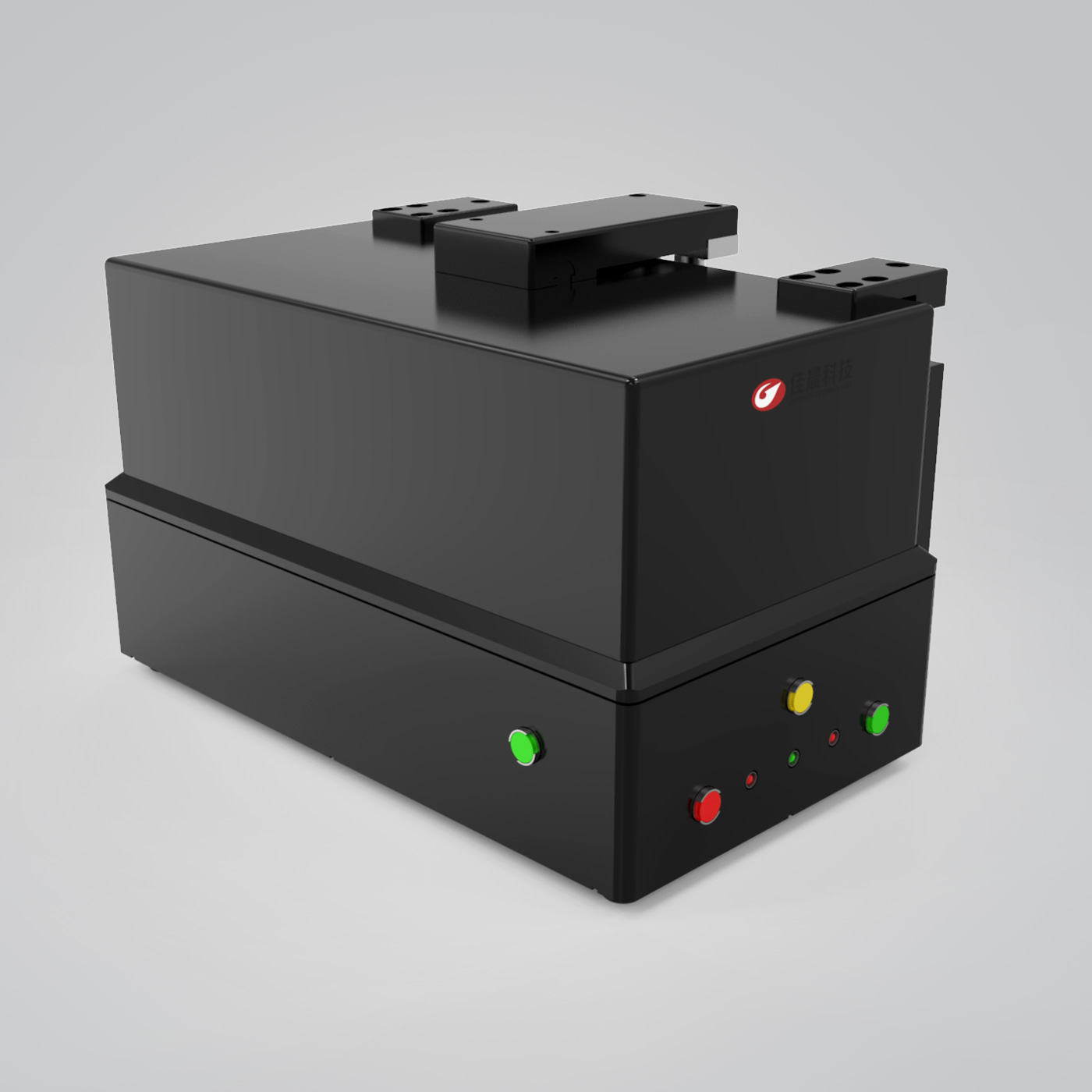

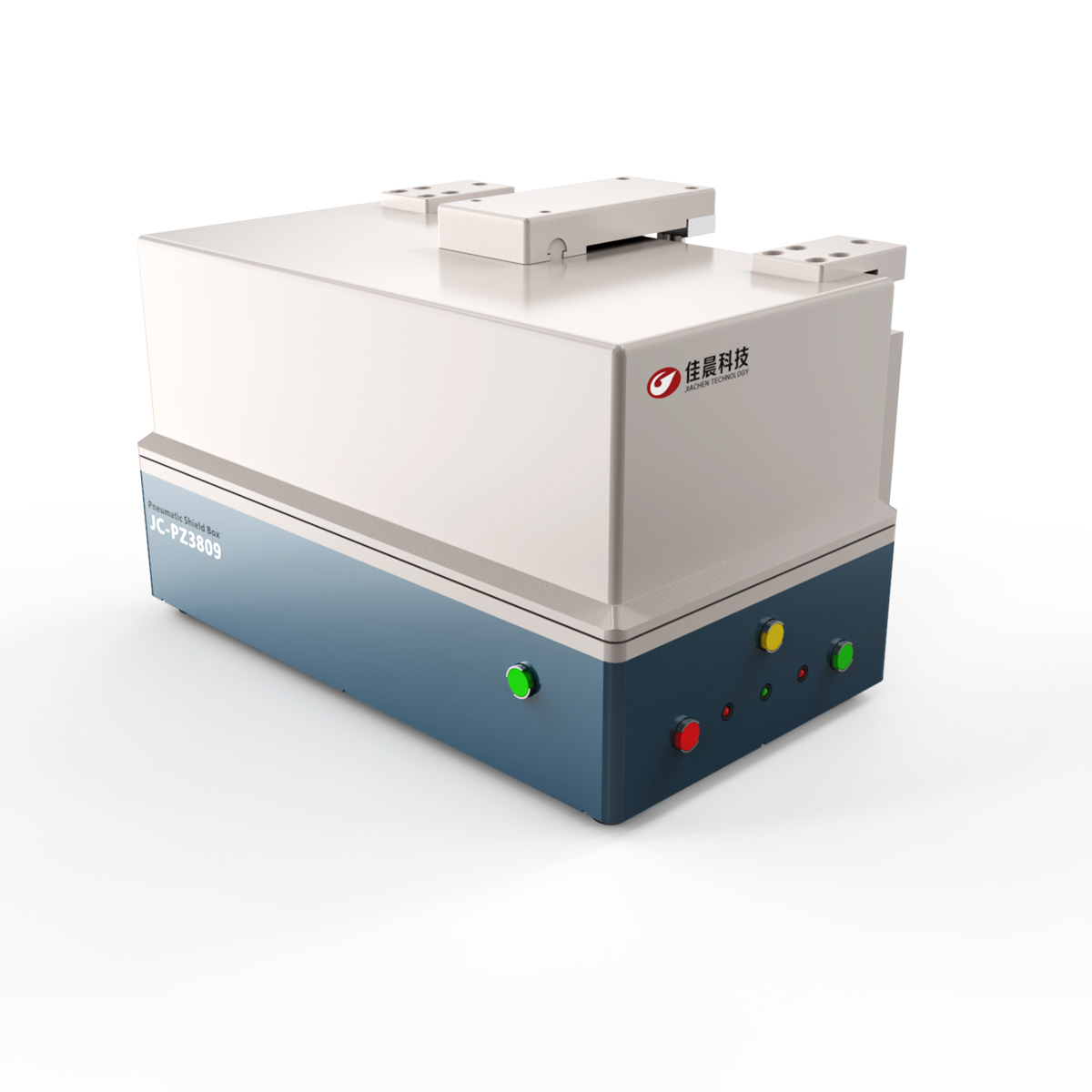

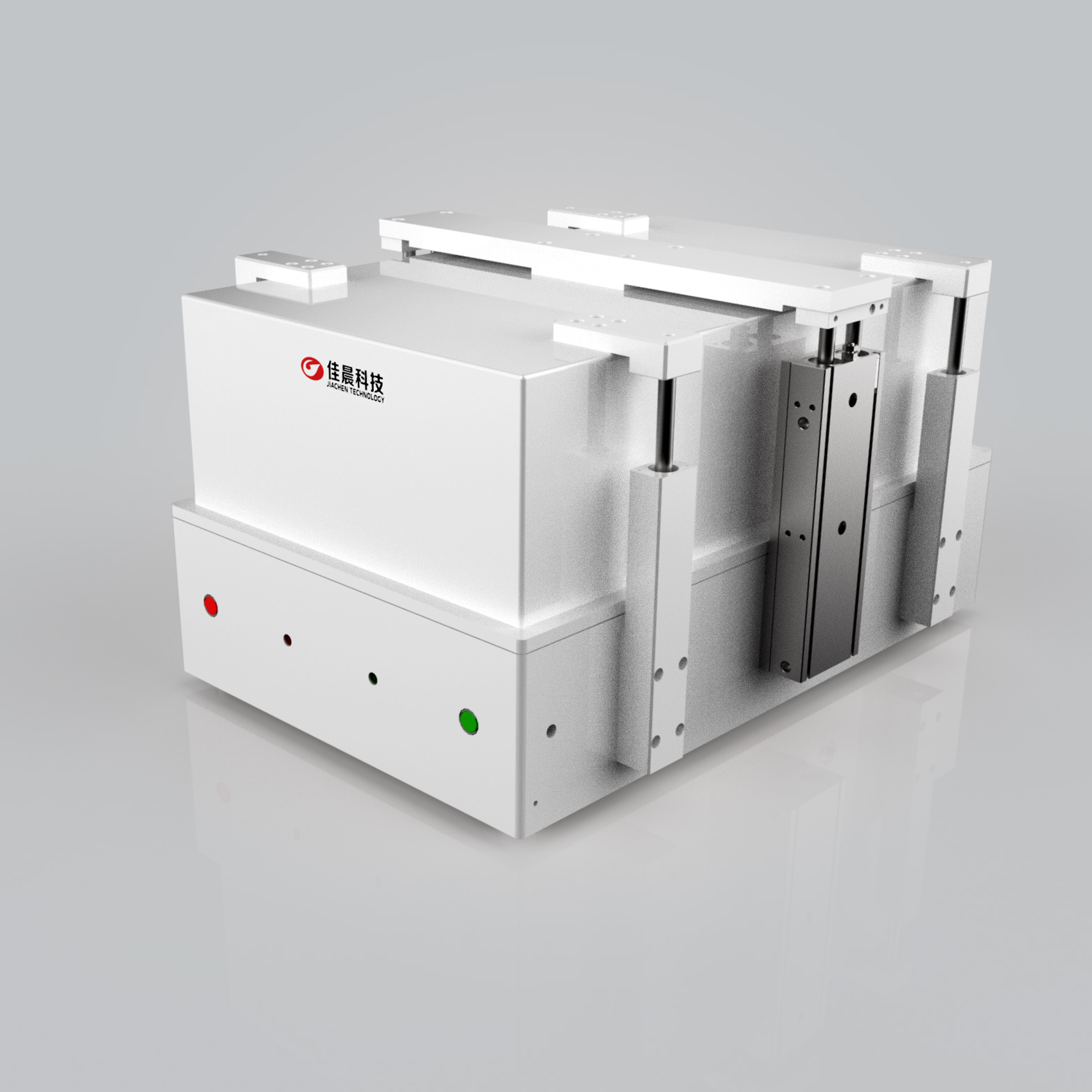

Jc-pz3809 vertical automatic shielding box

Jc-pz3809 vertical shield box product introduction

Shield Box

Shielding box is a kind of shielding body with various shapes made of conductive or magnetic conducting materials, which limits the electromagnetic capacity within a certain space range and is used to suppress radiation interference. It also deals with the conduction and radiation, so as to provide a non-interference test environment for the tested wireless communication equipment.

Working principle of jc-pz3809 vertical automatic shielding box

The full-automatic shielding box is made of conductive or magnetic materials, which is mainly suitable for testing of wireless communication products, such as mobile phones, wireless network cards, wireless data cards, wireless routers, WiFi and other related products. Features: one is to limit the radiation electromagnetic energy inside the equipment to exceed a certain area, that is, to absorb the internal interference signal; the other is to prevent the external radiation electromagnetic energy from entering a certain area, that is, to shield the external interference signal.

Main functions and application scope of jc-pz3809 vertical shield box

Wireless communication test

EMI testing,

EMS test

Coupling test (coupling antenna is equipped separately)

RF function test

Performance index parameters of jc-pz3809 vertical shielding box

Shield box material: Casting

Appearance color: Coffee

Working stroke: 150 mm

Communication port: RS232 (DB9)

Working frequency: 800m-6ghz

Shielding effect: box 800m-6ghz ≥ 70dB

Shielding effect: interface 800m-6ghz ≥ 60dB

Working dimension: (L) 200X (W) 390x (H) 120mm ± 5mm

Box size: (L) 250x (W) 440x (H) 145mm ± 5mm

Appearance dimension: (L) 290x (W) 460x (H) 290mm ± 5mm

JC-PZ3809垂直式自动重庆屏蔽箱外形尺寸
